TengTools | SKU:
1292AGR-CT

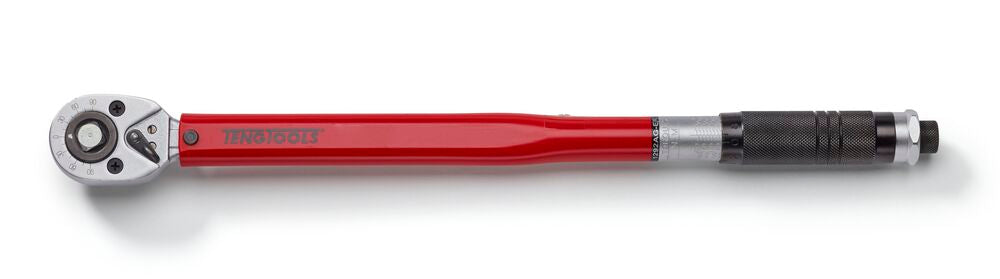

1/2" Torque Wrench Bi-Directional 40 - 210Nm CT
- 1/2″ torque wrench
- ±4% accuracy
- Designed for both clockwise and counterclockwise fastening
- Click-type mechanism with audible torque signal
- Integrated angular gauge for post-tightening adjustments
- Primary Nm scale with additional ft-lb reference scale
- Reversible 24-teeth ratchet mechanism (DIN3122) with 15° swing arc
- Push-through square drive for easy directional changes
- Twist lock to secure set torque
- Handle markings for correct force application
- Measures 465 mm in length and supplied in a durable storage case
Tax included
This is a recommended retail price, local deviations may occur.
Warranty
Warranty
Documents
Description
Description
The TengTools 1292AG-ER 1/2″ torque wrench delivers professional-grade precision and versatility, designed for both right-hand (clockwise) and left-hand (counterclockwise) fastening. With a torque range of 40-210 Nm and an accuracy of ±4%, it offers reliable performance across a wide array of demanding applications requiring precise and consistent torque values. The torque wrench has an secondary scale ranging from 30 to 150 ft-lb, which allows users to work with both Nm and ft-lb measurements. This feature provides flexibility when users need to switch between metric and imperial units, depending on the standards required for the job. This torque wrench is engineered with a click-type mechanism that provides a clear signal when the set torque is reached, which helps prevent over-torquing and ensures that fasteners are properly secured. It also features an in-built angular gauge, allowing for precise after-tightening adjustments when required. The DIN 3122-compliant 24-teeth reversible ratchet mechanism has a 15° swing arc, and its push-through square drive enables simple directional changes for efficient bi-directional use. The twist-locking facility ensures that the set torque is securely maintained and prevents accidental adjustments during operation. The handle is clearly marked to indicate where to place the hand which promotes accurate and consistent torque application. At 465 mm in length, the wrench provides excellent leverage while still being easy to handle. It comes in a durable storage case for protection and convenience during transport. Each torque wrench is assigned a unique number and individually tested to comply with ISO 6789 standards and comes with a ‘Declaration of Conformance’ for guaranteed accuracy. All CT models undergo an additional check for conformance before being dispatched from the TengTools warehouse in the UK.
Designed in Sweden
| Attribute | Value |
|---|---|
| Product Type | Torque Wrenches |
| Drive | 1/2" |
| No. of teeth | 24 |
| Primary scale resolution | 1 |
| Secondary scale resolution | 0.738 |
| Accuracy | ± 4% |
| Conformance certificate | New |
| Reverse direction | Push through |
| Bi-directional | Yes |
| Mechanism | Click |
| Standard | DIN 3122;ISO 6789 |
| Width (mm) | 46.9 |
| Item weight (g) | 1340 |
| Primary range | 40-210 Nm |
| Secondary range | 30-150 ft-lb |
| Length | 465 mm |
