TengTools | Item ID:
3892D100

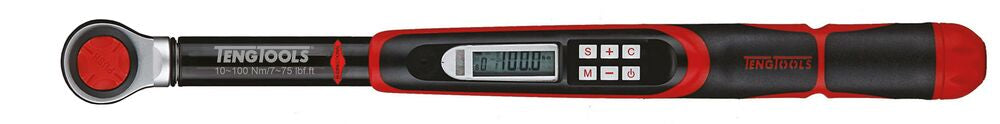

Digital Torque Wrench 10 - 100Nm
- Digital torque wrench with ±1% accuracy
- Digital display with Nm, ft/lb, in/lb, and kg/m units
- 9 preset torque settings with customizable tolerances
- Indicator light and audible signals for torque confirmation
- Reversible 45-teeth ratchet mechanism compliant with DIN 3122
- Quick-release button for easy socket changes
- Handle with markings for correct force application
- Powered by standard AA batteries
- Delivered in a robust protective case
- Individually tested to ISO 6789 standards with unique serial number and Declaration of Conformance
Warranty
Warranty
Documents
Description
Description
TengTools 3892D100 3/8″ digital torque wrench is suitable for tasks requiring torque of 10-100 Nm and a very high precision of ±1%, such as precise tightening in the automotive and aerospace industries. The digital display shows values in Nm, ft/lb, in/lb, or kg/m, making it versatile and adaptable for various applications. The tool has 9 preset torque settings, allowing customization of torque tolerances for different tasks. An indicator light and audible signals alert the user when the desired torque is reached. The reversible 45-teeth ratchet mechanism, built according to DIN3122, provides precise and reliable tightening in both directions. A quick-release button makes it easy and fast to change sockets and socket accessories. The handle provides good leverage and has markings showing where to place the hand. It is powered by standard AA batteries that are easy to replace. The tool comes in a robust case for protection and easy transport. Each torque wrench is assigned a unique number and individually tested to comply with ISO 6789 standards and comes with a ‘Declaration of Conformance’ for guaranteed accuracy.
Designed in Sweden
| Attribute | Value |
|---|---|
| Product Type | Torque Wrenches |
| Drive | 3/8" |
| No. of teeth | 45 |
| Primary scale resolution | 0.1 |
| Secondary scale resolution | 0.1 |
| Accuracy | ± 1% |
| Conformance certificate | Factory |
| Reverse direction | Push twist |
| Digital | Yes |
| Bi-directional | Yes |
| Mechanism | Buzzer,Light |
| Effective length (mm) | 334 |
| Standard | DIN 3122;ISO 6789 |
| Batteries included | No |
| Battery type | AA |
| Width (mm) | 42.5 |
| Item weight (g) | 892 |
| Primary range | 10-100 Nm |
| Secondary range | 7-75 ft-lb |
| Length | 465 mm |
