TengTools  |  Item ID: 1292P418
Barcode: 5020385033023

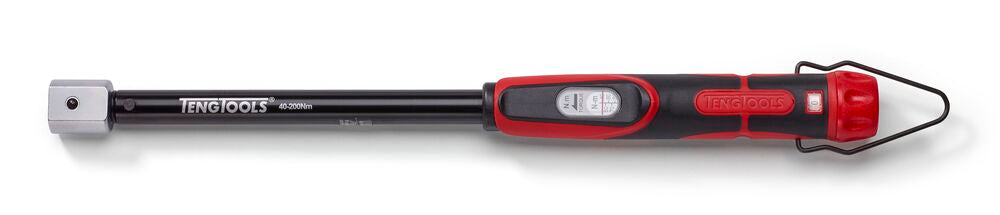

Insert Torque Wrench 14 x 18, 40 - 200Nm

  • standard_din3122.svg
  • standard_iso6789.svg
  • range_40-200nm.svg
  • accuracy_-4.svg
  • bi-directional_yes.svg
  • mechanism_click.svg
  • Insert torque wrench for 14×18 mm interchangeable insert tools
  • Torque range of 40–200 Nm with ±4% accuracy
  • Click-type mechanism signals when torque is reached
  • Supports clockwise and counterclockwise torquing
  • Nm scale with 1 Nm resolution
  • Locking button to prevent accidental setting changes
  • Compact head for improved accessibility in confined spaces
  • Ergonomic bi-material grip with marked pressure application point
  • Supplied in a durable storage case
  • Individually tested to ISO 6789 standards with unique serial number and Declaration of Conformance

Warranty

All our tools meet, or exceed, the demands in ISO, DIN and other international standards. As an extra security for you, our tools are offered with a guarantee against material and manufacturing defects during the normal lifetime of the product in question. Defective products covered by the guarantee will be repaired or replaced. Defects or performance issues caused by accidents, not approved modifications, misuse, normal wear & tear or lack of proper care are excluded.

xmlns="http://www.w3.org/2000/svg"> Documents

1292P418_en-GB.pdf

Description
TengTools 1292P418 insert torque wrench is designed for use with 14×18 mm interchangeable insert tools, delivering a torque range of 40–200 Nm with an accuracy of ±4%. The click-type mechanism provides a clear signal when the preset torque is reached. The tool supports torquing in both directions, making it suitable for controlled tightening of both right and left-handed fasteners. To tighten left-hand threaded fasteners, turn the insert tool around. The Nm scale, with a 1 Nm resolution, is easy to read and adjust, while the locking button ensures the selected setting is not changed by accident during use. With a compact head, the torque wrench offers improved accessibility in confined spaces. The ergonomic two-component handle has a marked section that indicates where to place the hand for increased precision. The tool comes in a durable storage case for easy transportation, and has a weight of 1096 g and a length of 480 mm. Each torque wrench is individually tested to meet ISO 6789 and is assigned a unique serial number and a factory-issued certificate of conformity.
Designed in Sweden Designed in Sweden
Attribute Value
Product Type Torque Wrenches
Primary scale resolution 1
Accuracy ± 4%
Conformance certificate Factory
Insert tool size 14 x 18 mm
Bi-directional Yes
Mechanism Click
Effective length (mm) 425
Standard DIN 3122;ISO 6789
Width (mm) 42
Item weight (g) 1096
Primary range 40-200 Nm
Length 480 mm
