TengTools  |  SKU: TTX3892
Barcode: 5020385030053

3/8" Torque Wrench Set 20-110 Nm TTX4 22 Pieces

  • inlaymaterial_ps.svg
  • typeofset_ttx4.svg
  • no.ofpieces_22.svg
  • standard_din3122.svg
  • standard_iso6789.svg
  • drive_3-8.svg
  • drive_5-16-hex.svg
  • Ideal set for automotive technicians
  • Equipped with an in-built angular gauge for easier after tightening
  • Click type mechanism when the required torque is reached
  • Additional ft/lb reference scale (range 15-81 ft/lb)
  • Marked to show the correct place where pressure should be applied
  • Twist locking facility to ensure the set torque is maintained
  • Reversible 24 teeth ratchet (DIN3122) giving 15° increments
  • Designed to torque right hand (clockwise) fasteners
  • Accurate to +/- 4% conforms to ISO6789 for assured accuracy
  • Individually tested and certified at the time of manufacture
  • Organised in a tool tray module size X4 (TTX4)

Warranty

All our tools meet, or exceed, the demands in ISO, DIN and other international standards. As an extra security for you, our tools are offered with a guarantee against material and manufacturing defects during the normal lifetime of the product in question. Defective products covered by the guarantee will be repaired or replaced. Defects or performance issues caused by accidents, not approved modifications, misuse, normal wear & tear or lack of proper care are excluded.

xmlns="http://www.w3.org/2000/svg"> Documents

TTX3892_en-GB.pdf

Description

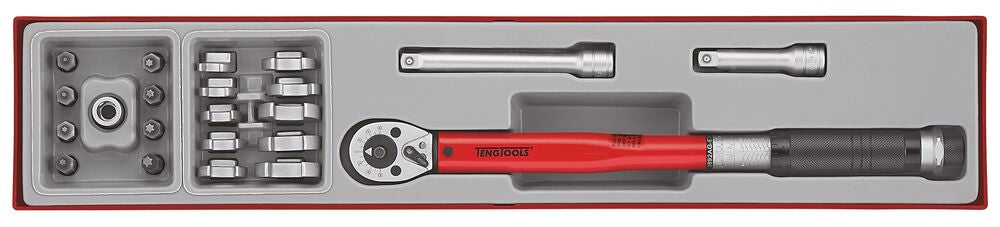

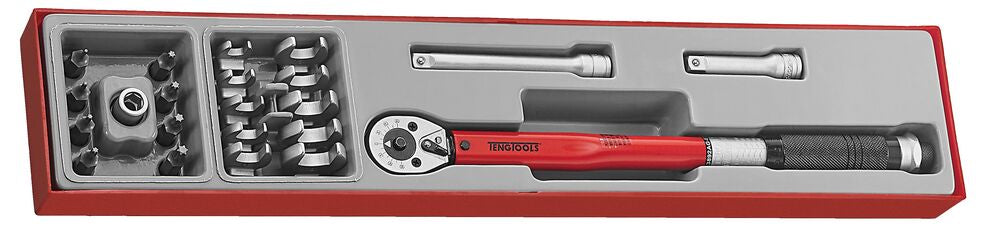

Includes

3892AG-E3
3/8" Torque Wrench 20 - 110Nm

M380020-C
3/8" Extension Bar 75mm

M380023-C
3/8" Extension Bar 125mm

M386510-C
3/8" Crow Foot Wrench 10mm

M386511-C
3/8" Crow Foot Wrench 11mm

M386512-C
3/8" Crow Foot Wrench 12mm

M386513-C
3/8" Crow Foot Wrench 13mm

M386514-C
3/8" Crow Foot Wrench 14mm

M386515-C
3/8" Crow Foot Wrench 15mm

M386516-C
3/8" Crow Foot Wrench 16mm

M386517-C
3/8" Crow Foot Wrench 17mm

M386518-C
3/8" Crow Foot Wrench 18mm

M386519-C
3/8" Crow Foot Wrench 19mm

M380061-C
3/8" Bit Adaptor Hex bit coupler 10mm Hex

220708
TX Bits 40mm TX08 ×1

220710
TX Bits 40mm TX10 ×1

220715
TX Bits 40mm TX15 ×1

220720
TX Bits 40mm TX20 ×1

220725
TX Bits 40mm TX25 ×1

220727
TX Bits 40mm TX27 ×1

220730
TX Bits 40mm TX30 ×1

220740
TX Bits 40mm TX40 ×1

Included in

TKS26R1033T
26" PRO35™ Mega Master tool kit 1033 pieces red

TKS26B1033T
26" PRO35™ Mega Master tool kit 1033 pieces black

TKW37B1008T
37" PRO35™ roller cabinet tool kit 1008 pieces black

TKS53R1295T
53" PRO35™ Monster stack tool kit 1295 pieces red

Designed in Sweden Designed in Sweden
Attribute Value
Product Type Torque Tool Sets
No. of pieces 22
Drive 3/8",10mm Hex
Standard DIN 3122;ISO 6789
Inlay material PS
Type of set TTX4
Width (mm) 570
Item weight (g) 2166
Depth (mm) 115
Height (mm) 56
